Description:

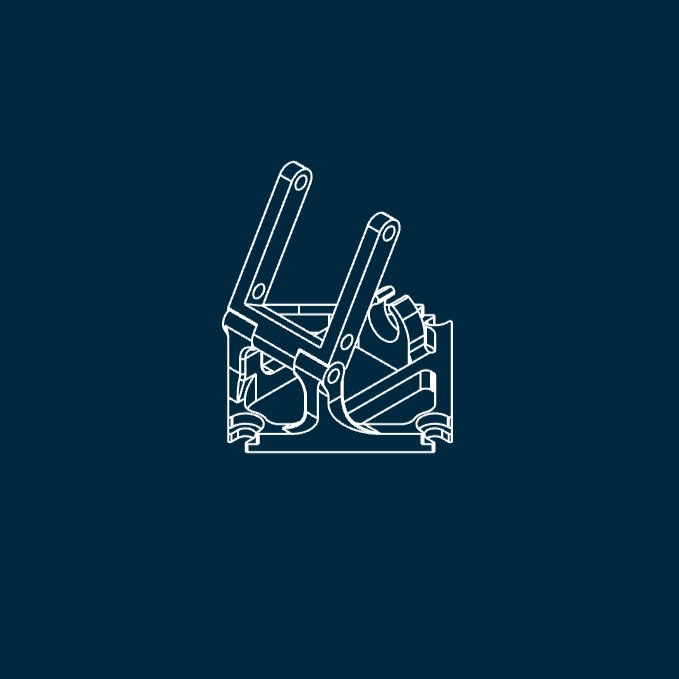

The ERIS FPV Camera Mount is carefully designed to be a highly adjustable FPV camera mounting solution, with an open design to promote airflow over critical components. With its soft-mounted frame alongside its highly adjustable camera angle, this camera mount is built to ensure a smooth and comfortable flight experience.
Specifications:
Adjustable Camera Angle w/ ~50° Functional Range of Motion (90° Actual Range of Motion)
25.5mm² Mounting Pattern
Assembled Mass (Without Camera): ~4 grams
Required Parts/Components:
*4 M2×6.6mm Silicone Soft Mounts
*4 M2x5mm Camera Mounting Screws
*1 M2×25mm Camera Mounting Arm Hinge Screw
*1 M2 Self-Locking Nut
Recommended Filaments: PETG, PETG-CF, 95F TPU
Additional Information:
Recommended Systems: Toothpicks, Cinewhoops, Large Tinywhoops
It is recommended that you tuck the excess VTX cable THROUGH or BETWEEN the ERIS FPV Camera Mount and the VTX Main Board when adjusted to desired position. This helps to prevent possible cable damage from a variety of sources.
(We learned the hard way)
*Jaeger Robotics does NOT permit the resale of these files, or the sale of parts printed using .gcode generated from the .3MF file purchased above*
